Through Conduit Pipeline Gate Valve

Through Conduit Pipeline Gate Valve

Size: 2"~42"
Rating: CL150~CL2500
Materials: C.S, S.S, Duplex

Size: 2" to 42"
Pressure Classes: ANSI 150, 300, 600, 900, 1500
End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.

Materials (Standard)
Standard Constructions
Cast Carbon Steel A216 Gr WCB Body and Bonnet.
13% chrome stem, gate and seats. Stem packing PTFE / graphite composite. Seating surfaces of gate and seats hard faced with tungsten carbide on request.

Manufacturing to NACE MR-01-75 on request.

Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials.
Various trim materials available to suit service conditions.

Operation
Manual, Electric, Hydrau-Pneumatic Actuator

Design Codes
API 6D, ANSI B16.34, ANSI 16.5, ASME VIII, API 6FA.

Quality Assurance
Accredited with ISO 9001 and API Q1 Quality Assurance Programmes.

conduit gate valve

through conduit valves

through conduit gate valves

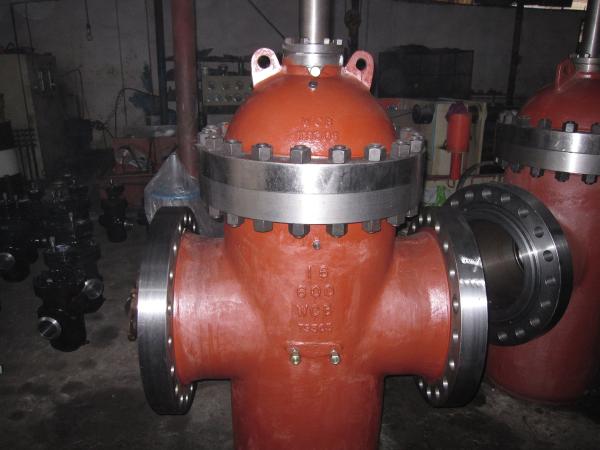

Through Conduit Pipeline Gate Valve Images
