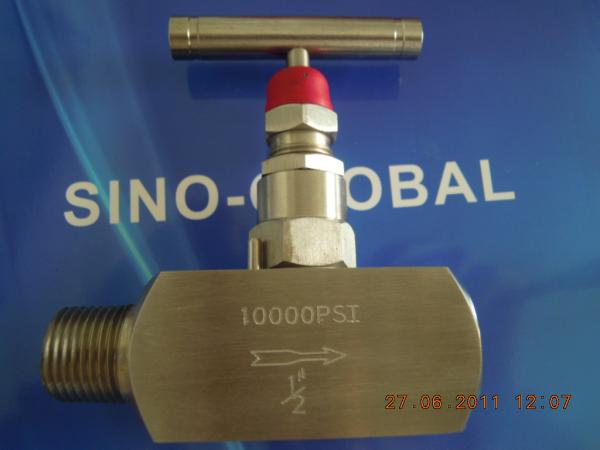

FNPT-MNPT Stainless Steel Needle Valve T Lever Operated

Product Categories

Sino-Global Beijing Import And Export Co.,Ltd

Contact Now

Name: FNPTMNPT Stainless Steel Needle Valve T Lever Operated
Brand: SG or OEM
Price: 15 USD

MOQ : 1 Set

Packaging Details : Plywood cases

Brand Name : SG or OEM

Delivery Forecast : Request By Client

Place of Origin : China

Supply Ability : 500tons per month

Payment Terms : TT LC

Certification : ISO9001; API6A; API6D

Model Number : Stainless Steel Needle Valve

Price : 15usd~2000usd

Delivery Time : Negotiation

Contact Now

High Pressure 2000PSI - 20000PSI, Handwheel Stainless Steel Needle Valve

High Pressure Needle Valve

Product model:J13W-1.6(42)P

Size: 1/4" -2"

Pressure: Class 150LB-2500LB or 2000PSI-20000PSI

Material: CF8, CF8M, CF3, CF3M, A105, LF2, F11, F304, F316, F304L, F316L

Design & Manufacture Std.: ASME B16.34

Threaded End: G, NPT, BSP, BSPT, DIN259/2999

Butt-weld End.: ASME B 16.25

Socket-weld End: ASME B16.11

Test Standard: API598

Structure Type: Reduced bore, Full bore

Operated way: T-lever, handwheel

Part name				Stem, Bonnet						Stem, disc					Packing
J13W-16P				Cr. Ni Stainless steel						Cr. Ni Stainless steel					PTFE, Soft graphite
J13W-160, J13W-40				High grade carbon steel						Cr, Stainless steel

Type		PN Mpa			PS (Mpa)_Test pressure							(Mpa) Working pressure		(OC) Working temps.			Applicable medium
					Shell		Seal		Seal
J13W-16		1.6			2.4		1.76		0.6			1.6		P≤540OC			Petroleum gas Water, As, Steam, Oil, etc.
J13W-40P		4.0			6.0		4.4		0.6			4.0
J13W-160		16.0			24.0		17.6		0.6			16.0		C≤425 OC
J13W-320P		32.0			48.0		35.2		0.6			32.0
DN(mm)	G Screw thread		Dimension													(kg)Weight
			Do			L		H			H1		d
6	1/4		60			55		90			100		4			0.63
10	3/8		60			60		92			102		5			0.65
15	1/2		65			65		97			107		6			0.8
20	3/4		8			80		109			121		8			1.07
25	1		100			90		122			132		10			1.8
32	11/4		140			128		180			191		15			5.0
40	11/2		160			148		200			215		18			7.2

Product Tags:

stainless steel valves
