Electric Stainless Steel DN10 - DN100 Ball Valve for gas, steam, water and oil

Product Categories

Sino-Global Beijing Import And Export Co.,Ltd

Contact Now

Name: Electric Stainless Steel DN10 DN100 Ball Valve for gas steam water and oil
Brand: SG or OEM
Price: 150 USD

Place of Origin : China

Brand Name : SG or OEM

MOQ : 1 set

Packaging Details : Plywood case or buyer request

Delivery Time : Negotiation

Payment Terms : TT; LC

Supply Ability : 100 ton per month

Certification : API6A, API6D, ISO

Price : 150USD~20000USD

Contact Now

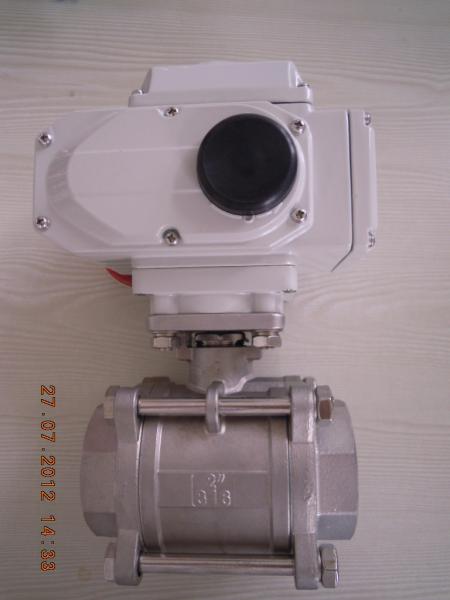

Electric stainless steel DN10 - DN100 Ball Valve for gas, steam, water and oil

Product Summerized

1) Electric stainless steel ball valve ,small size,

consist of three parts of shells and four bolts from the

two ends to clip the middle of body and the ball .

2) In remove and maintenance don’t remove the four bolts,

just remove the four bolts directly then the middle part can be take out .

Working principle is also through the pneumatic actuators of 90 degrees

rotation to drive the ball rotation, thus achieved the circulation and blocking of the medium.

3) The directly connect of the actuators and body reduced the probability of

the failure, it applicable to light industry machinery of small narrow space occasions.

Product Parameter

Electric actuators	Type: 1.on/off 2.I/O:4-20MA
Explosion proof electric actuator	EX d Ⅱ BT4 EX d Ⅱ CT6 Regulation type,switch type
Voltage	AC220V AC110V AC380V DC12V DC24V DC110V
Nominal diameter	DN10-DN100
Nominal pressure	1.6-6.3MPa
Applicable temperature	PTFE:-30~180°C PPL:-30~250°C
Connection	3pieces thread type,3pieces weld type,3pieces hoop type
Body structure	three pieces type
Body material	304,316,316L,WCB
Disc material	304,316,316L
Seat lining	PTFE,PPL
Applicable medium	gas,steam,water and oil etc
